技術分類Technical?Classification

項目規格Item

參(can)數(shu)Parameter

電(dian)氣性能(neng)Electrical?Properties

供電電(dian)壓(ya)Input?voltage

DC24V

最大功耗Max.power?consumption

15W

光學性能Optical?Properties

光源(yuan)組成LED?composition

216?PCS

光(guang)色LED?Color

單色/全彩?Single?Color/Full?Color?

光(guang)通量(liang)

luminous?flux

550?lm

光束角?Beam?Angle

140°

亮(liang)度等(deng)級Brightness?Grade

每種顏色256?級?256?grade?per?color

光通維持率luminous?maintenance?rate

50000?hour@70%

控制方(fang)式Control?Mode

控制接口(kou)Interface

DMX512

控制(zhi)系統(tong)Control?System

中鳴科技Easyplay5.0?(Joinmax)

結構性能Structure

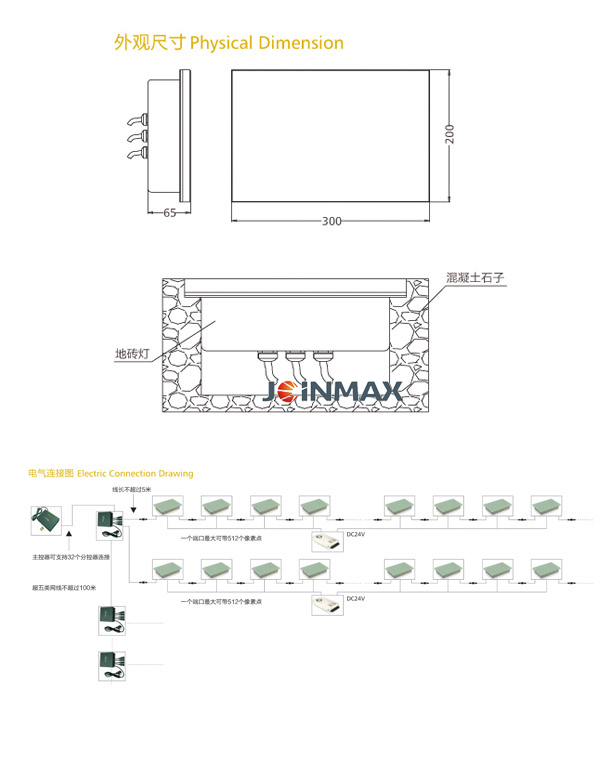

尺寸(長x寬x高)?Dimension?(L*W*H)

200X300X65mm

重量Weight

5Kg

燈體材料Material

304不銹鋼底，全物理鋼化玻璃燈罩

304?staninless?steel?and?tempered?glass?surface

表(biao)面顏色Surface?Color

可選?choice

燈(deng)具連(lian)接Connection

4芯防水接插件，2芯電源電纜?

4-?pin?waterproof?connector

2-pin?power?cable

防護等級Protection?Rating

IP67

工作(zuo)溫度Work?Temperature

-20℃～40℃

工(gong)作濕度Work?Humidity

0～90%

供電方式?

Input?Voltage

發光顏色?LED?Color

產品編號?Model

DC?24V

白光(guang)??5草帽?216顆15W

JZ04-121612-025

紅光??5草帽?216顆15W

JZ04-121611-025

綠(lv)光??5草帽?216顆15W

JZ04-121616-025

藍光(guang)??5草帽?216顆15W

JZ04-121609-025

黃光??5草帽?216顆15W

JZ04-121608-025

RGB??5草帽?216顆15W

JZ04-121607-025

?
