- Functional Description
- Specifications
- Applications

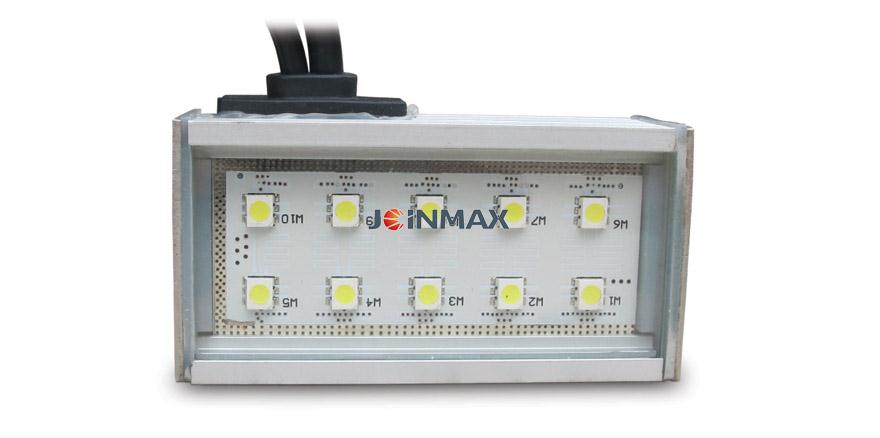

1. This series of spotlight lamp is made from exuded aluminum with excellent heat-dissipation effect, good light transmittance ratio glass mask and high light efficacy as well as wide vision angle.
2. Employ middle-power LED light source with single color or multiple color light source, abundant color changes available and good color saturation, suitable for the décor lighting in and outside.
3. Employ on-line DMX512 patent technology 【patent number：ZL 2010 2 0262526.4：ZL 2009 1 0223737.9】
4. To write the address in the controlling end after finishing the lamp installation, more convenient installation and better reliability.
5. Fully-concealed structure reaching IP65 protection grade ,easy installation suitable for use in and outside.
技術(shu)分類Technical?Classification | 項目規(gui)格(ge) Item | 參(can)數 Parameter |
電(dian)氣性能Electrical?Properties | 供電(dian)電(dian)壓 Input?voltage | DC24V |
最大功耗 Max?power?consumption | 5W | |
光學性能Optical?Properties | 光源(yuan)組成 LED?composition | 10顆中(zhong)功率白色?LED?? 10pcs?of?medium?white?LED |
光(guang)色(se) LED?color | 冷白色(se) cold?white?5700K | |
光通量 luminous?flux | 250?lm | |
光束角 Beam?angle | 120° | |
亮度(du)等級 Brightness?grade | 每種顏色256?級(ji) 256?grade?percolor | |
光(guang)通維持(chi)率 Luminous?maintenance?rate | 50000?hour（@70%） | |
控制方式 Control?Mode | 控制接口 Interface | DMX512? |
控制系(xi)統 Control?System | 中鳴科技 Easyplay5.0（joinmax） | |
結構(gou)性能Structure | 尺(chi)寸(長x寬x高(gao))?Dimension(LxWxH) | 116mm×59mm?×34mm |
燈體材(cai)料 Material | 擠壓鋁+透明玻璃 Die-casting?aluminium+?glass | |
表面顏色 Surface?color | 銀灰色 Silver?grey | |
燈(deng)具連(lian)接 Connection | 5芯信號電(dian)纜，2芯電(dian)源電(dian)纜，帶自動編址功能。 5-pin?signal?cable+2-pin?power?cable,?automatic?addressing?function | |
防護等級 IP?grade | IP65 | |
工作溫度 Work?temperature | -20℃～50℃ | |
工作濕度 Work?humidity | 0～90% | |
最大級(ji)聯數 Max?cascade?connection?qty | 最大級聯16個燈具(ju) ?Up?to?16?fixtures | |
使用環境(jing) Work?Environment | 干燥/潮(chao)濕 dry/wet | |
安全(quan)性能(neng)Safety | 認證 Certificate | CE |
發(fa)光顏色 LED?Color | 產品(pin)編號 Model |
白色（5700K） White | JM02-301001RM |
-
