- Functional Description
- Specifications
- Applications

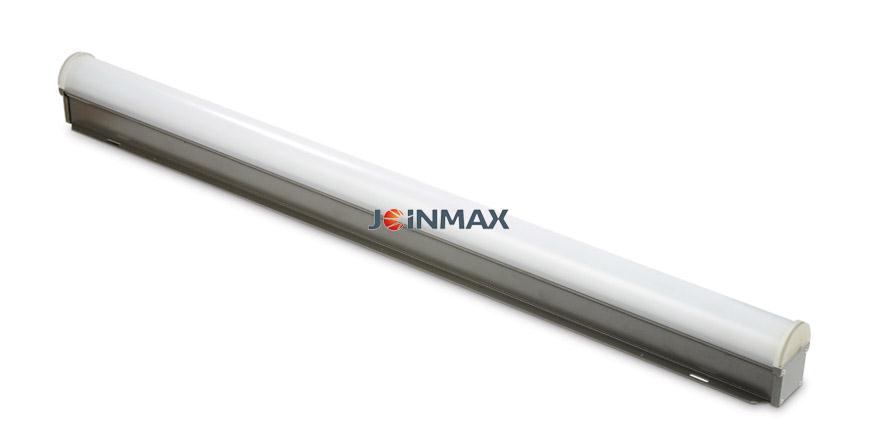

1. Employ small-power, three in one LED as light source with high light efficacy, long working-life matching PC mask with high transmittance rate, the sparking angle is over 140 degree. Three color mix evenly and ?ideal effect could still be achieved when looked nearby.
2. Employ electricity supply from direct current power DC 24V, which could connect more lamps and save cable costs.
3. Aluminum alloy +PC enhance the heat-radiation effect greatly and compact small-size structure used for the installation and maintenance.
4. The protection ?grade has reached IP 65, suitable for indoor and outdoor use.
5. The density of pixel is as high as 8 pixels each meter, suitable for the outline lighting of outer walls and unit for large display screen.
技術分類(lei) Technical?Classification | 項(xiang)目規格 Item | 參(can)數 Parameter |
電氣(qi)性能 Electrical?Properties | 供電電壓Input?voltage | AC100-240V，50-60Hz |
最(zui)大(da)功耗(hao)Max.power?consumption | 25W | |
功率(lv)因數(shu)?Power?factor | >?0.90? | |
光學性(xing)能 Optical?Properties | 光源組成LED?composition | 72顆3合1?SMD?LED??72?pcs?of?SMD?LED?Lamps |
像素間距Pixel?pitch | 125mm | |
顯示(shi)像素(su)Pixels | 8?像素/米?8?pixels/meter | |
光色LED?color | 紅色/綠色/藍/全彩色?red/green/blue/full?color | |
光(guang)束角(jiao)Beam?angle | 140° | |
亮(liang)度(du)等級(ji)Brightness?grade | 每種顏色256?級256?grade?per?color | |
光通維(wei)持率 Luminous?maintenance?rate? | 50000?hour（@70%） | |
控(kong)制方式 Control?Mode | 控制接口Interface | DMX512 |
控制系統(tong)Control?System | 中鳴科技Easyplay5.0 | |
結構(gou)性能 Structure | 尺寸(長x寬x高) ?Dimension?(L*W*H) | 1005X78X86（mm） |
重量Weight | 1.5Kg | |
燈體材料Material | 擠壓鋁+磨砂PC??Die-casting?aluminium?and?transparent?PC | |
表面顏色Surface?color | 金黃色?Gold | |
燈(deng)具連接(jie)Connection | 4芯信號接插件，3芯電源接插件????4-pin?signal?connector,?2-pin?power?connector | |
防(fang)護等級IP?grade | IP65 | |
工作溫度(du)Work?temperature | -20℃～50℃ | |
工作濕度Work?humidity | 0～90% | |
最大(da)級聯數 Max.?cascade?connection?qty | 電源級聯20個，信號級聯?32個????20pcs?(power)；32pcs?(signal) | |
使用(yong)環境Work?Environment | 干燥/潮濕dry/humid | |
安全性能 Safety | 認(ren)證Certificate | CE，CCC |
長度規格 Length | 功(gong)率Power | 發光顏色 LED?Color | 產品(pin)編(bian)號(hao) Model | |
1005mm | 25W | 紅色/綠色/藍色組合 red/green/blue | JM07-207201RGB | |
505mm | 13W | 紅色/綠色/藍色組合 red/green/blue | JM07-203601RGB |
-
