- Functional Description
- Specifications
- Applications

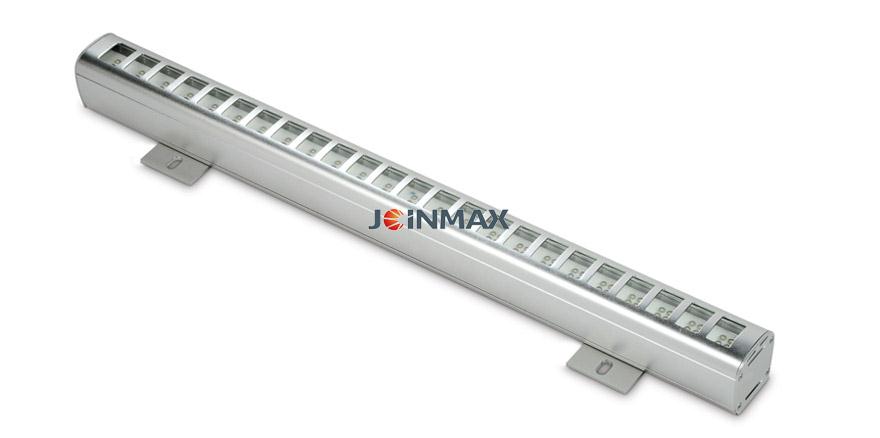

1. Employ the inserted packaged LED as light source with highly-effective, energy-saving, long working life and wide light angle over 60 characteristics
2. The structure employs the aluminum alloy and semi-steel glass, the bottom of the aluminum, the bottom of the aluminum material has been punched and in the form of grilling, the outer-light surface is at the bottom
3. The lamp employs the double-sided structure, shockproof and still function well when glass broke.
4. Good waterproof effect and protection grade reaches IP66, suitable for indoor and outdoor uses.
5. Single color or full color LED light source available with colorful effect, soft and elegant color
項目規格Item | 參數?Parameter | |
電氣性能Electrical?Properties | 供電電壓(ya)Input?voltage | AC?220V |
最大功耗Max.power?consumption | 7W | |
功率因數?Power?factor | >0.7 | |
光學性能Optical?Properties | 光源組成LED?lamp??composition | 96顆直插小功率LED??96?pcs?of?LED?lamps |
光色(se)LED?color | 4000K?白色? | |
光(guang)束角Beam?angle | 60° | |
亮度等級Brightness?grade | 2級? | |
壽命（光通維持率）Luminous?maintenance?rate | 50000?hour（@70%） | |
控制方式Control?Mode | 控制方式?Control?mode | 上電常亮?long?lit?after?turning?on |
控制系統Control?system | 無?no | |
最大級聯數Max.?cascade?connection?qty | 電源級聯100個?100pcs | |
結構性能Structure?Properties | 尺寸(長x寬x高)Dimension?(L*W*H) | 600X51X53（mm） |
重量Weight | 1.2Kg | |
燈體材料Material | 鋁型材Aluminium? | |
表面顏色Surface?Color | 鋁(lv)原(yuan)色?Silver?grey | |
燈具連接Connection | 3芯電源線?3-core?power?cable | |
防護等級(ji)Protection?Grade | IP66 | |
工作溫度Work?Temperature | -20℃～50℃ | |
工作(zuo)濕度Work?Humidity | 0～90% | |
使用環境Work?Environment | 干燥/潮濕dry/humid | |
安全性能Safety | 認證Certificate | CE，CCC |
?
長度規格?Length | 功率?Power? | 發光顏色?CT | 產品編號Model |
600mm | 7W | 4000K | JM07-109603RL |
?
-
